Sequoia Advanced BioImaging Research Microscope
High resolution imaging is the key design principle that the Sequoia biological research microscope was built around and every aspect of its construction flows into this principle. The uncompromising optical light path is combined with high numerical aperture objectives on a rugged, all-metal frame that minimizes vibrations. Thanks to this optimized design, the Sequoia delivers the highest resolution without making sacrifices for speed or sensitivity when capturing images.
Select a camera to match your application: from cooled CCD cameras for low-light fluorescence to state-of-the-art CMOS cameras for the best combination of sensitivity and resolution. Combine this with powerful LED-based light sources for flourescence or transmitted light and observe as your specimens reveal structures you have never before seen.
| Optical System | Infinity Color Corrected Optical System |
| Viewing Head | 30° Inclined gemel binocular viewing head (inverted image). Interpupillary distance adjustment from 50mm – 76mm. |
| 30° Inclined gemel trinocular viewing head (inverted image). Interpupillary distance adjustment from 50mm – 76mm. Beam splitting ratio of 100:0, 20:80, or 0:100. | |
| Eyepieces | High eyepoint, widefield plan PL10x, diopter adjustable eyepiece, FN22. Accepts 24mm diameter reticle. |
| Objectives | Plan Semi Apochromat Fluor 4x, NA 0.13, WD 16.43, cover glass thickness 0.17mm |
| Plan Semi Apochromat Fluor 10x, NA 0.30, WD 8.13, cover glass thickness 0.17mm | |
| Plan Semi Apochromat Fluor 20x, NA 0.50, WD 2.03, cover glass thickness 0.17mm | |
| Plan Semi Apochromat Fluor 40x, NA 0.75, WD 0.74, cover glass thickness 0.17mm, spring loaded | |
| Plan Semi Apochromat Fluor 10x, NA 1.28, WD 0.18, cover glass thickness 0.17mm, spring loaded, oil immersion | |
| Nosepiece | Inclined sextuple nosepiece with DIC slot. |
| Frame | Biological transmitted light frame, low-position coaxial coarse and fine focusing adjustment. Coarse adjustment distance 25mm, fine precision adjustment 0.001mm. Coarse adjustment stop and tightness adjustment. Built-in 100~240V AC50/60Hz wide voltage transformer, light intensity adjustable by digital set and reset. Built-in transmitted filters LBD/ND6/ND25. |
| Fluoescence transmitted light frame, low-position coaxial coarse and fine focusing adjustment. Coarse adjustment distance 25mm, fine precision adjustment 0.001mm. Coarse adjustment stop and tightness adjustment. Built-in 100~240V AC50/60Hz wide voltage transformer, light intensity adjustable by digital set and reset. Built-in transmitted filters LBD/ND6/ND25. | |
| Stage | 4″ Double layer mechanical stage with glass plate for transmitted illumination. Size: 187mm x 168mm. Moving range: 80mm x 55mm,. Precision: 0.1mm. Two-way linear drive, tension adjustable. |
| Condenser | Swing-out Achromatic Condenser NA 0.9 |
| Lamp House | 12v, 100w Halogen lamp house for transmitted light, center pre-set and intensity adjustable. |
| Reflected Fluorescence Illumination | Metal Halide Illuminator standard. LED options available, see Accessories Tab. |

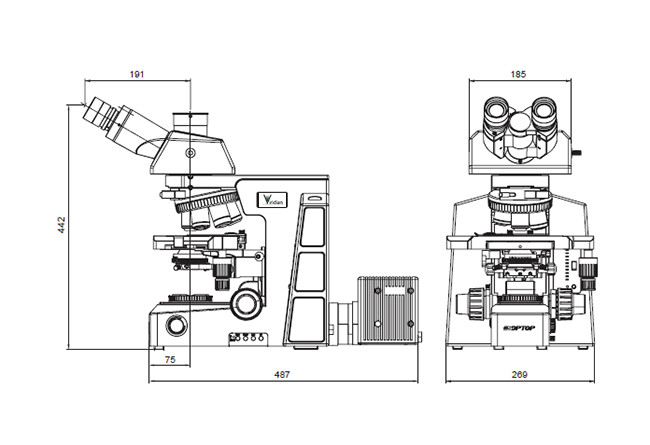

Viridian Sequoia BioImaging Research Microscope Dimensions (mm)
- Base Depth = 487mm
- Total Depth = 603mm
- Total Height = 442mm
- Head Width = 185mm
- Total Width = 269mm
